CHT-PLA9486A Quad Diode 80V/450mA

Manufacturer: CISSOID
Model:CHT-PLA9486A
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Stock Condition:New original, 158 pcs Stock Available.
Ship From:Shen Zhen / Hong Kong
Shipment Way:DHL/Fedex/TNT/UPS
Contact:[email protected]
WhatsApp:+86 13410359515

Datasheet

Part Number	CHT-PLA9486A
Manufacturer / Brand	Cissoid
Stock Quantity	158pcs Stock
Description	Transistors & Diodes > CHT Series (-55°C to 225°C)
Lead Free Status / RoHS Status:	Lead free / RoHS Compliant
Condition	New Original Stock
Warranty	100% Perfect Functions
Lead Time	2-3days after payment.
Payment	PayPal / Telegraphic Transfer / Western Union
Shipping by	DHL / Fedex / UPS/TNT
Port	HongKong
RFQ Email	[email protected]

The CHT-PLA9486A is a high temperature 80V/500mA quad diode in a hermetically sealed TDFP16 ceramic package. It is designed to achieve high performance in an extremely wide temperature range: typical operation temperature goes from -55°C to 225°C while keeping leakage currents low.

Typical performances:

●Temperature range: -55°C to +225°C
●Maximum reverse voltage: 80V
●Max forward current @ 225°C: 450mA
●Capacitance: 15pF Typ.
●TDFP16 ceramic package

Application

●Full bridge rectification
●Power supplies
●General purpose diode

If you need support for your high temperature design, contact Cissoid.

Download CISSOID's Altium Library for IC symbols and package footprints. For installation, read the related Application Note.

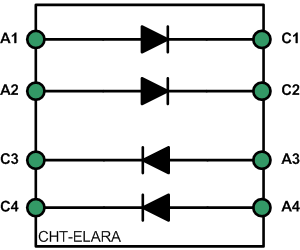

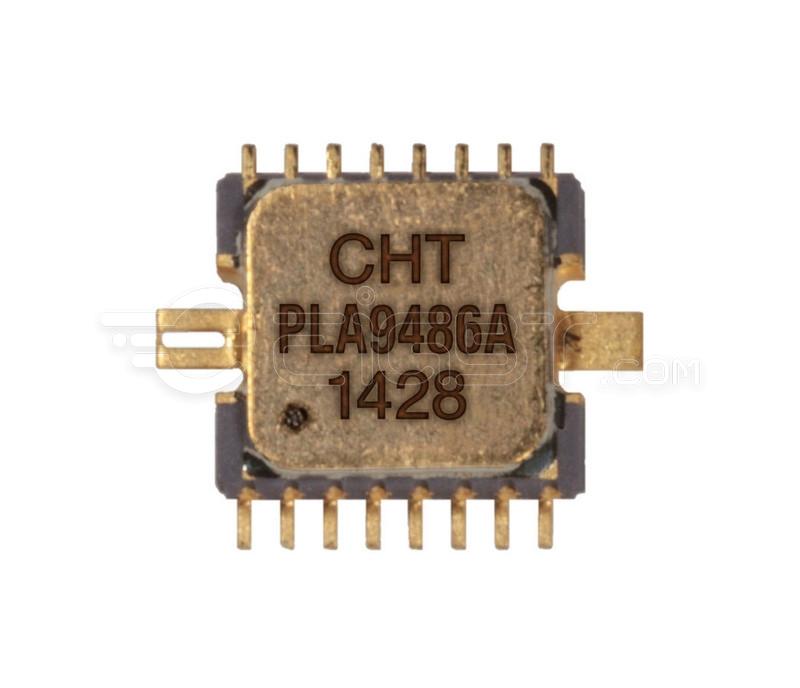

CHT-PLA9486A Quad Diode 80V/450mA

Die Map

Supporting its customers in the manufacturing of high temperature and high reliability hybrid modules, CISSOID delivers most of its CHT products as bare die. Please, do not hesitate to contact CISSOID to request die map information including die dimension, die finish, location and description of the bonding pads.
