CHT-SN8 Cissoid 80V small signal NMOS

Manufacturer: CISSOID
Model:CHT-SN8
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Stock Condition:New original, 158 pcs Stock Available.
Ship From:Shen Zhen / Hong Kong
Shipment Way:DHL/Fedex/TNT/UPS
Contact:[email protected]
WhatsApp:+86 13410359515

Datasheet

Part Number	CHT-SN8
Manufacturer / Brand	Cissoid
Stock Quantity	158pcs Stock
Description	Transistors & Diodes > CHT Series (-55°C to 225°C)
Lead Free Status / RoHS Status:	Lead free / RoHS Compliant
Condition	New Original Stock
Warranty	100% Perfect Functions
Lead Time	2-3days after payment.
Payment	PayPal / Telegraphic Transfer / Western Union
Shipping by	DHL / Fedex / UPS/TNT
Port	HongKong
RFQ Email	[email protected]

The CHT-SNMOS-80 is a high voltage 80V N-channel small-signal MOSFET designed to achieve high performance in an extremely wide temperature range: typical operation temperature goes from -55°C to 225°C.

Typical performances:

●Temperature range: -55°C to +225°C
●Drain voltage up to 80V
●Max 300mA drain current @ 225°C
●Vgs=0V to +5V
●Input capacitance: 23pF
●Gate Leakage: 0.4µA @ 225°C

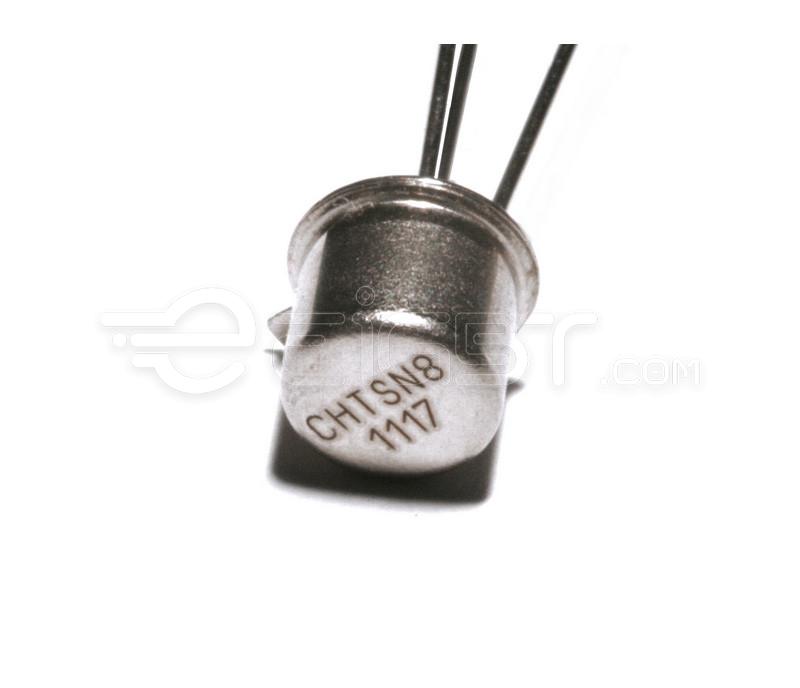

●Available in TO18 metal can package

Application

●Sensor interfaces, such as piezoelectric sensors
●Guard amplifiers
●Switches of high and medium impedance loads
●Level shifters

If you need support for your high temperature design, contact Cissoid.

Download CISSOID's Altium Library for IC symbols and package footprints. For installation, read the related Application Note.

Die Map

Supporting its customers in the manufacturing of high temperature and high reliability hybrid modules, CISSOID delivers most of its CHT products as bare die. Please, do not hesitate to contact CISSOID to request die map information including die dimension, die finish, location and description of the bonding pads.
