Manufacturer: CISSOID
Model:CHT-PLA1122A
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Stock Condition:New original, 158 pcs Stock Available.
Ship From:Shen Zhen / Hong Kong
Shipment Way:DHL/Fedex/TNT/UPS
Contact:[email protected]
WhatsApp:+86 13410359515
| Part Number | CHT-PLA1122A |
|---|---|
| Manufacturer / Brand | Cissoid |
| Stock Quantity | 158pcs Stock |
| Description | Transistors & Diodes > CHT Series (-55°C to 225°C):SiC power devices |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Condition | New Original Stock |
| Warranty | 100% Perfect Functions |
| Lead Time | 2-3days after payment. |
| Payment | PayPal / Telegraphic Transfer / Western Union |
| Shipping by | DHL / Fedex / UPS/TNT |
| Port | HongKong |
| RFQ Email | [email protected] |

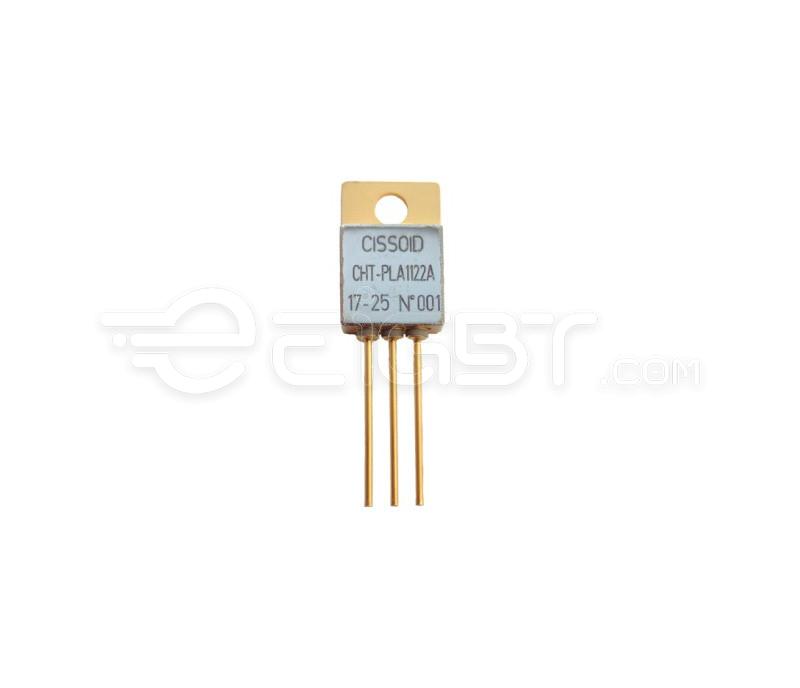

The CHT-PLA1122A is a high-temperature Silicon Carbide (SiC) Schottky Diode in a TO-257 hermetically sealed metal package. It is suitable to implement efficient power voltage rectifiers, e.g. in AC-DC converters. This product is guaranteed for normal operation on the full range -55°C to +210°C (Tj). The device has a breakdown voltage in excess of 1200V and is capable of switching current up to 10A. The SiC Schottky Diode has a forward voltage of 1.2V at 10A. The maximum continuous DC current is 10A at 175°C (Tc). The Repetitive Peak Fwd Surge Current is 12A.
Temperature range: -55°C to +210°C
Breakdown voltage up to 1200V
Forward voltage = 1.2V at 10A at 25°C
Max continuous DC current @ 175°C (Tc) = 10A DC
Repetitive Peak Fwd Surge Current: 12A
Hermetic package with isolated case
DC motor drives and actuator control
AC-DC converters and inverters

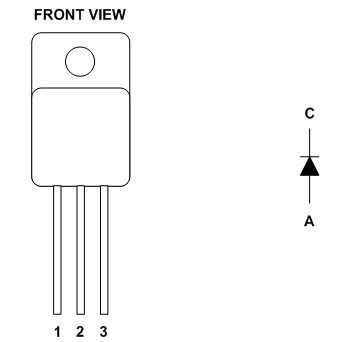

TO257 (Pin1= Cathode; Pin2= Anode Pin3= NC) (case floating)
| Product name | Ordering reference | Package | Marking |
|---|---|---|---|
| CHT-IO-1210 | CHT-PLA1122A-TO257-T | TO-257 | CHT-PLA1122A |
