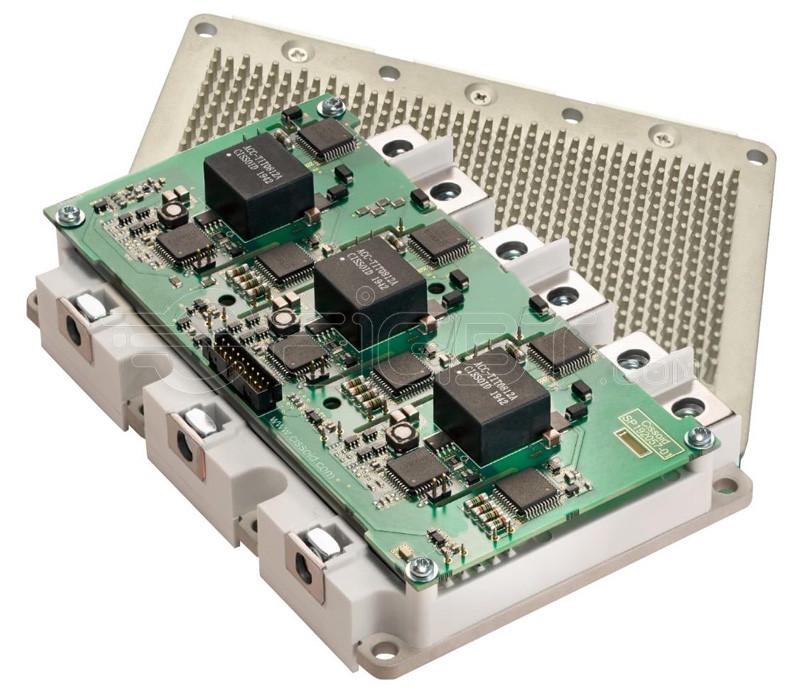

CXT-PLA3SA12450A is a 3-phase 1200V/450A Silicon Carbide (SiC) MOSFET Intelligent Power Module integrating the power switches and a gate driver based on the CISSOID HADES2 chipset.
Cooled down through a lightweight AlSiC Pin Fin baseplate, this module addresses high power density converters offering a SiC power module designed for operation at high junction temperature up to 175°C. Compared to IGBT modules, this solution gives access to the full benefits of SiC technology to achieve high efficiency, high power density and high reliability thanks to low switching losses and high temperature operation.
The integration of the gate driver together with the power module gives direct access to a fully validated and optimized solution in terms of switching speed and losses, robustness against dI/dt and dV/dt and protection of the power stages (Desat, UVLO, AMC, SSD).
Power Devices Junction Temperature: -40°C to +175°C
Gate Driver Ambient Temperature: -40°C to 125°C
Drain-to-source Breakdown Voltage: 1200V
Low On Resistance: 3.25mOhms typ.
Max Continuous Current: 450A/300A at Tc=25°C/90°C
Lightweight AlSiC Pin Fin baseplate for liquid cooling
Junction-to-case Thermal Resistance: 0.13 °C/W typ.
Switching Energy@ 600V/300A: Eon=8.42mJ/Eoff=7.05mJ
Switching Frequency: max 25Khz
Isolation (baseplate - power pins): 3600VAC @50Hz (1min)
Common Mode Transient Immunity: >50kV/μs
Low parasitic capacitance (primary-secondary): typ 11pF per phase
Gate Driver Protections:
Under Voltage Lockout (UVLO)
Desaturation Protection
Soft Shutdown turn-off (SSD)
Negative gate drive (-3V)
Active Miller Clamping (AMC)
Gate-Source Short-circuit Protection
Electrical Vehicle (EV) Motor Drives
Heavy Duty Motor Drives & Active Rectifiers
Industrial Motor Drives
