Manufacturer: SEMIKRON

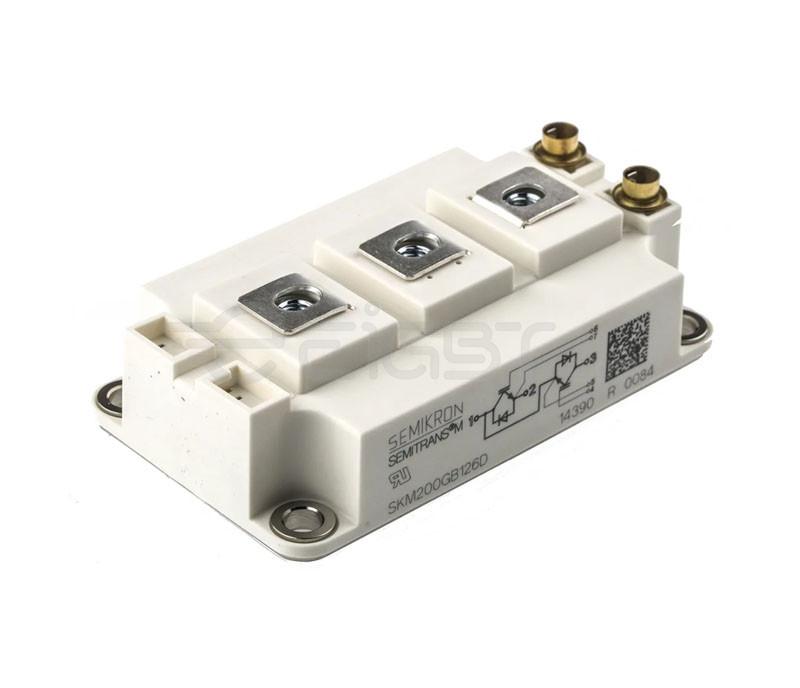

Model:SKM200GB126D
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Stock Condition:New original, 1059 pcs Stock Available.
Ship From:Hong Kong
Shipment Way:DHL/Fedex/TNT/UPS
Contact:[email protected]
WhatsApp:+86 13410359515
| Part Number | SKM200GB126D |
|---|---|
| Manufacturer / Brand | SEMIKRON |
| Stock Quantity | 1059pcs Stock |
| Description | IGBT Modules |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Condition | New Original Stock |
| Warranty | 100% Perfect Functions |
| Lead Time | 2-3days after payment. |
| Payment | PayPal / Telegraphic Transfer / Western Union |
| Shipping by | DHL / Fedex / UPS/TNT |
| Port | HongKong |
| RFQ Email | [email protected] |
You can fill out the following form or send us an email to [email protected] to get our quotation for the SKM200GB126D SEMIKRON IGBTs Modules, We will provide you with best price and delivery time offer as soon as possible.
A range of SEMITOP® IGBT modules from Semikron incorporating two series-connected (half bridge) IGBT devices. The modules are available in a wide range of voltage and current ratings and are suitable for a variety of power switching applications such as AC inverter motor drives and Uninterruptible Power Supplies.
Compact SEMITOP® package
Suitable for switching frequencies up to 12kHz
Insulated copper baseplate using Direct Bonded Copper technology
The Insulated Gate Bipolar Transistor or IGBT is a three-terminal power semiconductor device, noted for high efficiency and fast switching. The IGBT combines the simple gate-drive characteristics of the MOSFETs with the high-current and low–saturation-voltage capability of bipolar transistors by combining an isolated gate FET for the control input, and a bipolar power transistor as a switch, in a single device.
| Attribute | Value |
|---|---|
| Transistor Configuration | Series |

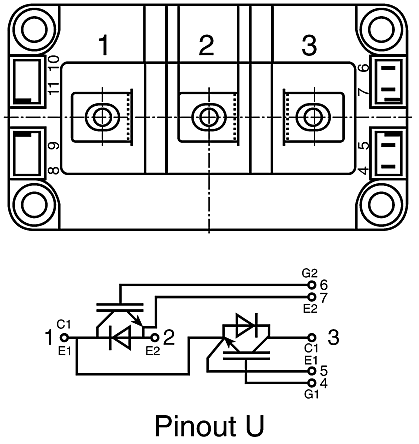

| Configuration | Dual Half Bridge |
| Maximum Continuous Collector Current | 260 A |
| Maximum Collector Emitter Voltage | 1200 V |
| Maximum Gate Emitter Voltage | ±20V |
| Channel Type | N |
| Mounting Type | Panel Mount |
| Package Type | SEMITRANS3 |
| Pin Count | 7 |
| Dimensions | 106.4 x 61.4 x 30mm |
| Height | 30mm |
| Length | 106.4mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 61.4mm |
