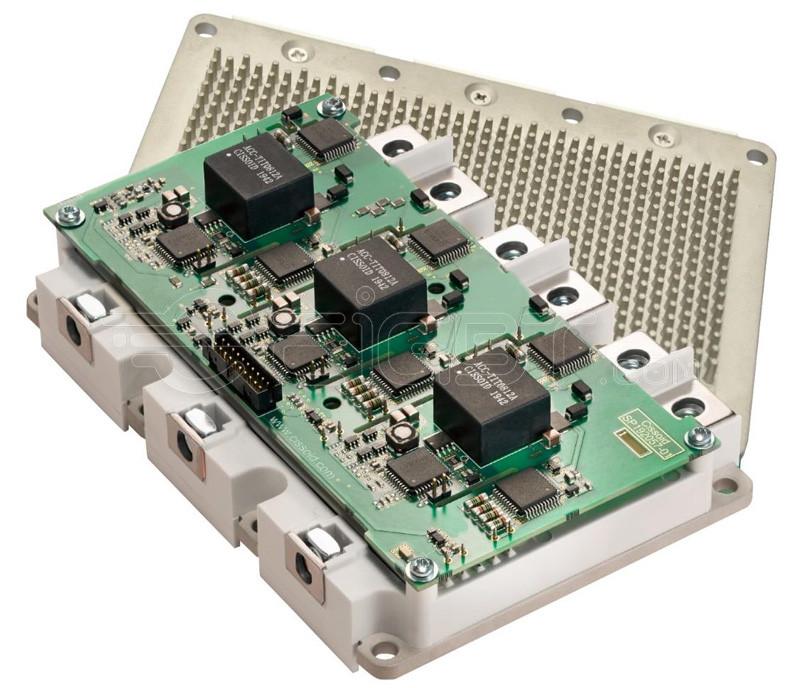

CXT-PLA3SA12550C is a 3-phase 1200V/550A SiC MOSFET Intelligent Power Module integrating the power switches and the gate driver based on CISSOID HADES2® chipset.
With its pin fin baseplate, this module addresses high power density water cooled converters offering a SiC power module designed for operation at high junction temperature (up to 175°C). This solution gives access to the full benefits of SiC technology to achieve high power density thanks to low switching losses and high temperature operation.
The integration of the gate driver together with the power module give direct access to a fully validated and optimized solution in terms of switching speed and losses, robustness againt dI/dt and dV/dt and pro-tection of the power stages (Desat, UVLO, AMC, SSD).

KEY FEATURES:

• • VDS breakdown voltage: 1200V
  • Low RDSON1: typ 2.53mΩ
  • Max Continuous current:
      - 600A typ. @ Tc=25°C
      - 450A typ. @ Tc=90°C
  • Thermal resistance (J2C):
     - 0.105 °C/W typ.
  • Max 175°C operating junction
  temperature (power devices)
  • Switching Energy@ 600V/300A:
     - Eon: 14.28 mJ
     - Eoff: 7.96 mJ
  • Switching frequency: 25kHz Max
  • Isolation (baseplate – power pins):
     - 3600VAC @50Hz (1min)
  • Common mode transient immunity:
     - >50kV/μs
  • Dimensions:
     - 104(W) x 154(L) X 34(H) (all in mm)
  • Weight: 590g
  1 Package resistance excluded
  • Single power supply (VCC):
     - +12V to +18V
  • Max 125°C operating ambient
  temperature (gate driver)
  • Isolation (primary – secondary):
     - 3600VAC @50Hz (1min)
  • Parasitic capacitance:
     - typ 11pF per phase
  • PWM input signal
     - 5V Schmitt trigger input
     - Active-High (Active-Low as an option)
  • Open-drain fault reporting:
     - per phase
     - per side as an option
  • Turn-On/Off delay: 180ns typ.
  • Under voltage lockout (UVLO)
     - On VCC
     - On internally generated second-ary supplies
  • Desaturation protection
  • Soft Shutdown turn-off (SSD)
  • Negative gate drive (-3V)
  • Active Miller Clamping (AMC)
  • Gate-Source Short-circuit Protection


APPLICATION

• Electrical Vehicle (EV) Motor Drives

• Heavy Duty Motor Drives & Active Rectifiers

• Industrial Motor Drives

ORDERING INFORMATION
