DIPIPM are widely used to control compressor motors, fan motors, and drum motors in air conditioners, refrigerators, and washing machines, and other small motor application.

Features of Electric power modules for home appliances
Wide lineup (for inverter, for PFC, built-in bootstrap diode type and built-in rectifier diode type)
Small size and high performance
Low loss and low thermal impedance
High quality and reliability

System Block Diagram

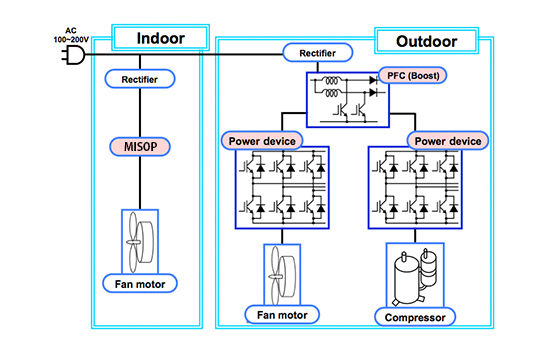

Air conditioner

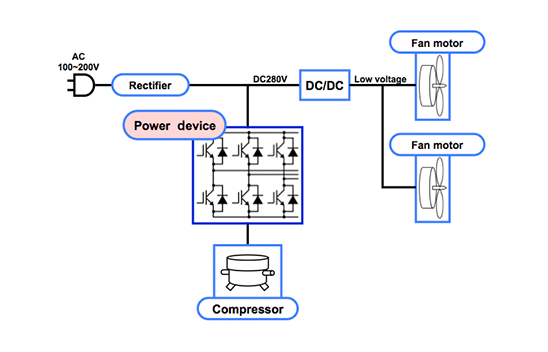

Refrigerator

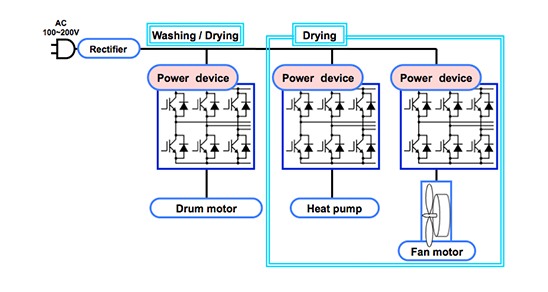

Washing machine

Power Module Map

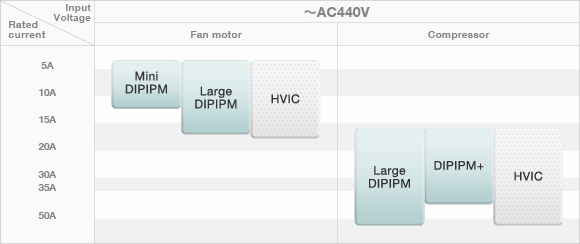

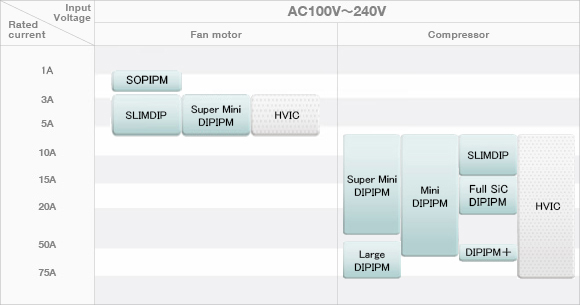

Air conditioner

Note) HVIC: High Voltage IC to drive power MOSFET and IGBT module
Current range of power devices driven by HVICs

Note) HVIC: High Voltage IC to drive power MOSFET and IGBT module
Current range of power devices driven by HVICs

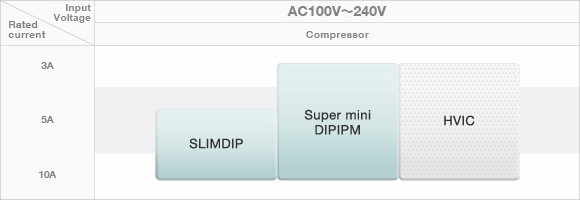

Refrigerator

Note) HVIC: High Voltage IC to drive power MOSFET and IGBT module
Current range of power devices driven by HVICs

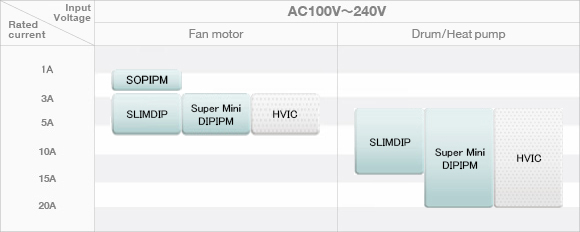

Washing machine

Note) HVIC: High Voltage IC to drive power MOSFET and IGBT module
Current range of power devices driven by HVICs

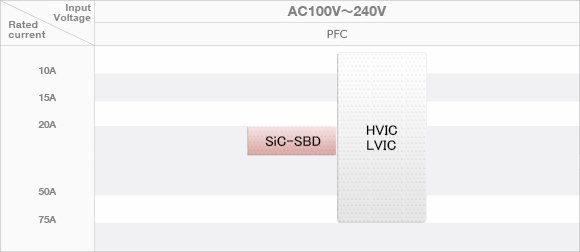

Power Factor Correction

Note) HVIC: High Voltage IC to drive power MOSFET and IGBT module
Current range of power devices driven by HVICs
