DYNEX, Product of the Month November 4.5kV & 6kV Asymmetric IGCT Bipolar Devices

4.5kV & 6kV Asymmetric IGCT Bipolar Devices

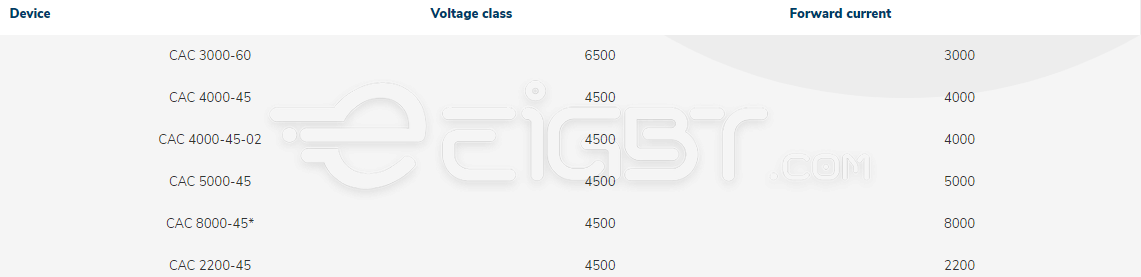

Leading Dynex's Bipolar offerings are a range of IGCTs capable of doing the most work with their idealised gate drives. The IGCTs are offered in the following voltages and currents.

The IGCT products have been designed for high power converters, motor drive equipment and flexible transmission systems in renewable and industrial applications.

This robust device offers a number of benefits for end-user applications inclusive of; reduced system cost, improved thermal characteristics, maximised system efficiency and reliable operation in severe environments.

The devices have passed the IEC60747-6-2000 Semiconductor Devices Part 6: Thyristor and IEC60747-2-2000 Semiconductor Devices Discrete Devices and Integrated Circuits Part 2: Rectifier Diodes test standards.

Key Features:

1. Self-turn off capabilities

2. Low operation losses

3. Fit for application in series

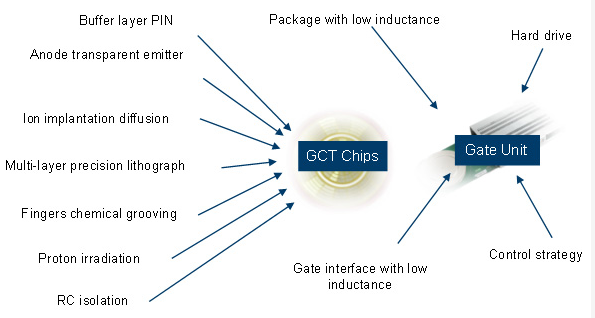

4. IGCT Technologies

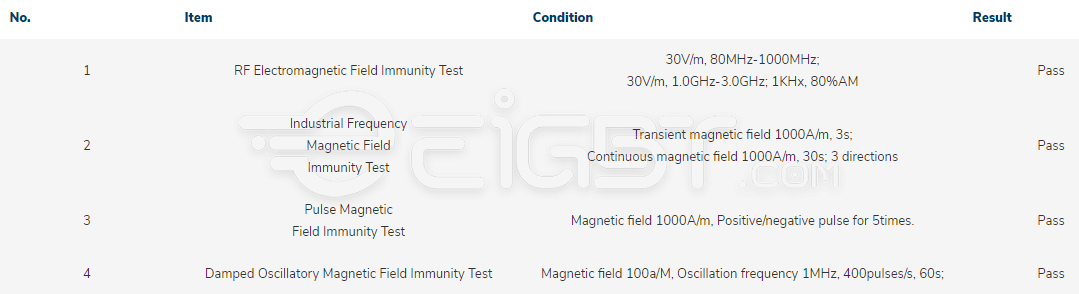

Reliability Testing

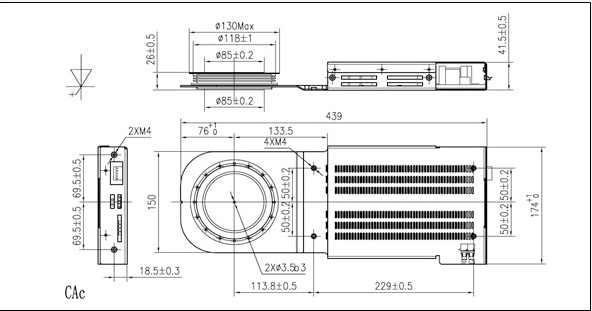

IGCT Package outline

The device is designed with high voltage capabilities, manufactured in a CAc outline package.

Contact us for more information on the IGCT devices and for datasheets.
