Hitachi ABB Power Grids enhances its successful IGBT module range into the mediumpower segment. Starting with the 62Pak and the LoPak1, Hitachi ABB Power Grids brings the proven high quality and reliability of the HiPak modules to the medium-power IGBT segment.

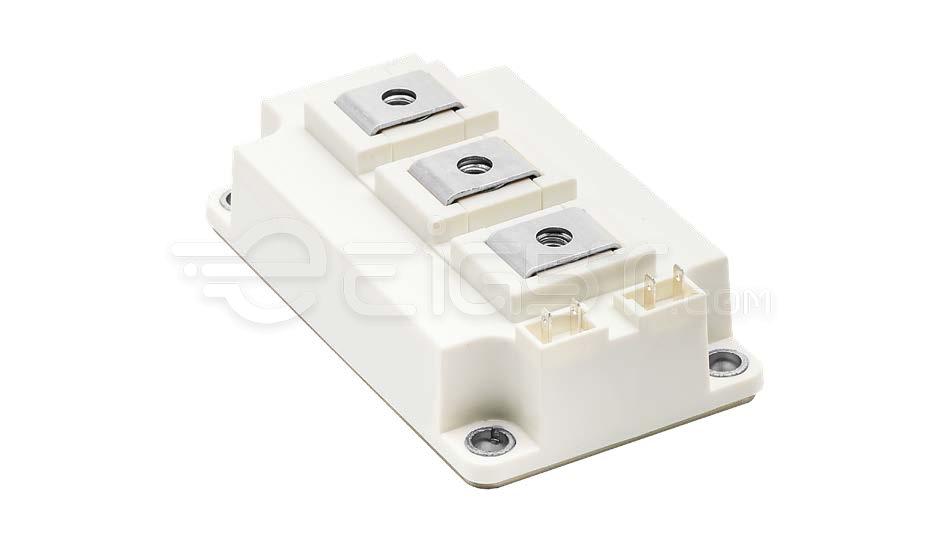

Hitachi ABB Power Grids’ 62Pak modules have an advanced packaging technology that leverages the performance of the latest silicon technology:
• 1700 V SPT++ fast switching IGBT / diode chipset with lowest switching losses
• Full 175 °C operation temperature with full square SOA
• Best-in-class temperature cycling performance of bond-wire chip connection
• Standard package allowing drop-in replacement
| Part number Tvj (operational) up to 175 °C | Voltage VCES (V) | Current IC (A) | Configuration | VCEsat (V) | VF (V) | Housing |
|---|---|---|---|---|---|---|
| 1.7 kV | ||||||
| 5SNG 0150Q170300 | 1700 | 2 x 150 | (5) - Phase leg IGBT | 2.55 | 1.75 | Q |
| 5SNG 0200Q170300 | 1700 | 2 x 200 | (5) - Phase leg IGBT | 2.55 | 1.75 | Q |
| 5SNG 0300Q170300 | 1700 | 2 x 300 | (5) - Phase leg IGBT | 2.55 | 1.75 | Q |
