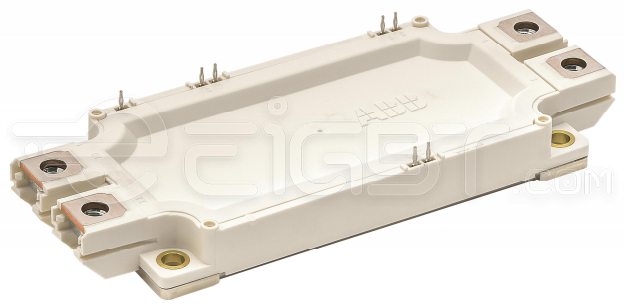

ABB 5SNG 0300R170390 LoPak1 phase leg IGBT Module

Article source: ABB Library

VCE = 1700 V

IC = 2 x 300 A

Press-fit pins for reliable auxiliary contacts

Ultra low-loss, rugged SPT++ chip-set

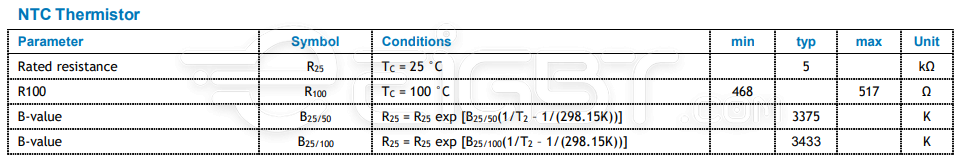

NTC thermistor for temperature sensing

Cu base-plate for low thermal resistance

Pre-Applied Thermal Interface Material (TIM) to

improve thermal conductivity between module

and heat sink

Industry standard package

This is an electrostatic sensitive device, please observe the international standard IEC 60747-1, chap. VIII.

This product has been designed and qualified for Industrial Level.
