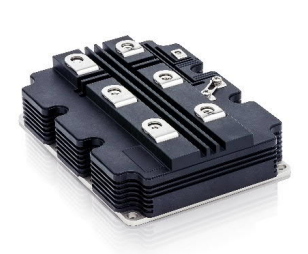

ABB, 5SNA 1500G450350 HiPak IGBT Module

Article source: ABB Library

•  VCE = 4500 V

•  IC = 1500 A

•  Ultra-low loss SPT++ technology

•  Very soft switching FCE diode with increased diode area

•  Exceptional ruggedness and highest current rating

•  High insulation package

•  AlSiC base-plate for high power cycling capability

•  AlN substrate for low thermal resistance

•  Recognized under UL1557, File E 196689
