STMicroelectronics, STGIPL14K60, SLLIMM small low-loss intelligent molded module IPM, 3-phase inverter, 15 A, 600 V short-circuit rugged IGBT

Article source:  STMicroelectronics official website

These intelligent power modules provides a compact, high performance AC motor drive in a simple, rugged design. Combining ST proprietary control ICs with the most advanced short-circuit-rugged IGBT system technology, this device is ideal for 3-phase inverters in applications such as home appliances and air conditioners. SLLIMM™ is a trademark of STMicroelectronics.

KEY FEATURES

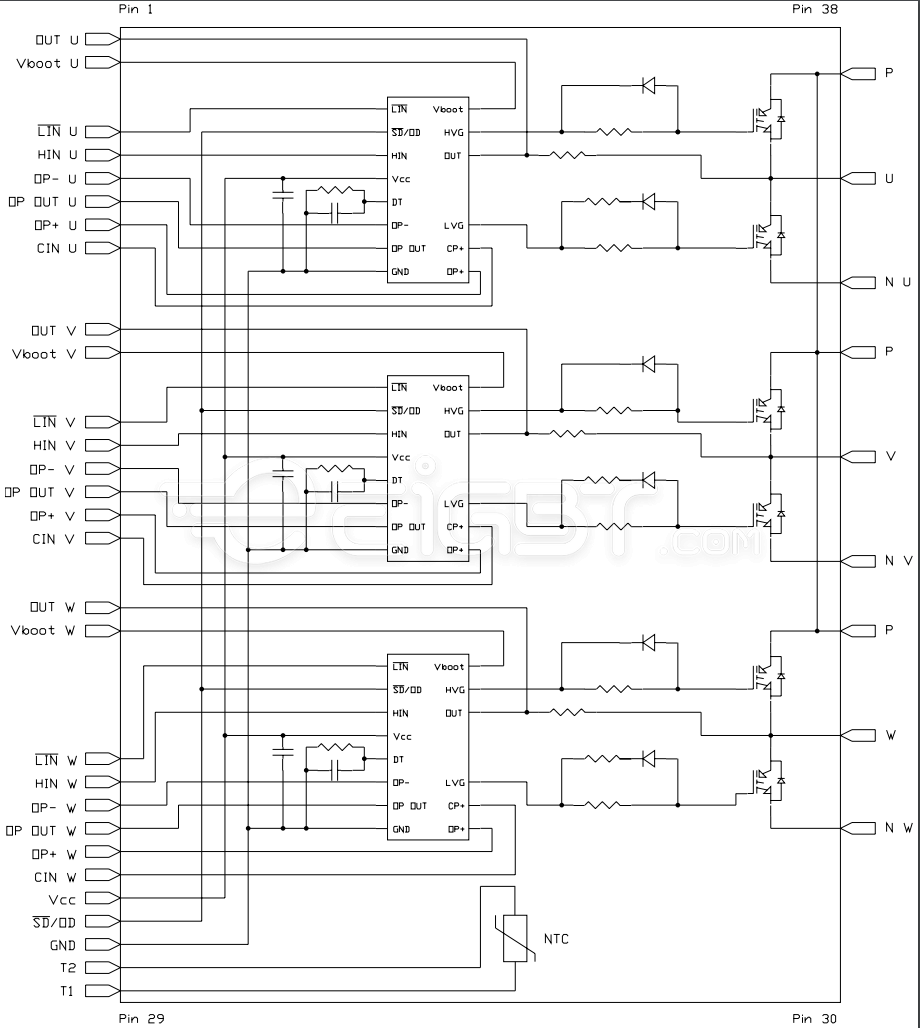

1. IPM 15 A, 600 V 3-phase IGBT inverter bridge including control ICs for gate driving and free-wheeling diodes

2. Short-circuit rugged IGBTs

3. VCE(sat)negative temperature coefficient

4. 3.3 V, 5 V, 15 V CMOS/TTL inputs comparators with hysteresis and pull down/pull up resistors

5. Undervoltage lockout

6. Internal bootstrap diode

7. Interlocking function

8. Smart shut down function

9. Comparators for fault protection against overtemperature and overcurrent

10. Op amps for advanced current sensing

11. DBC substrate leading to low thermal resistance

12. Isolation rating of 2500 Vrms/min

13. 5 kΩ NTC for temperature control

14. UL Recognized: UL1557 file E81734
